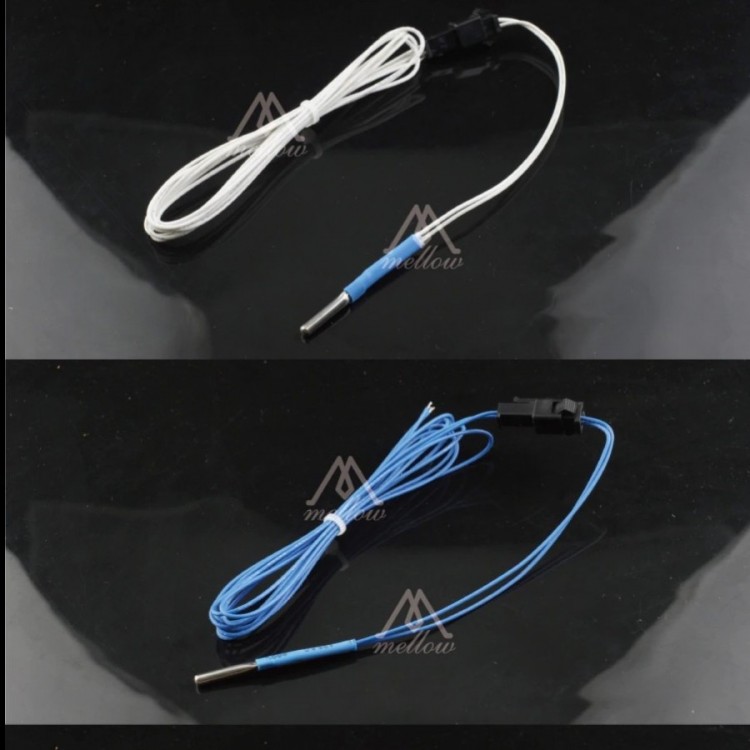

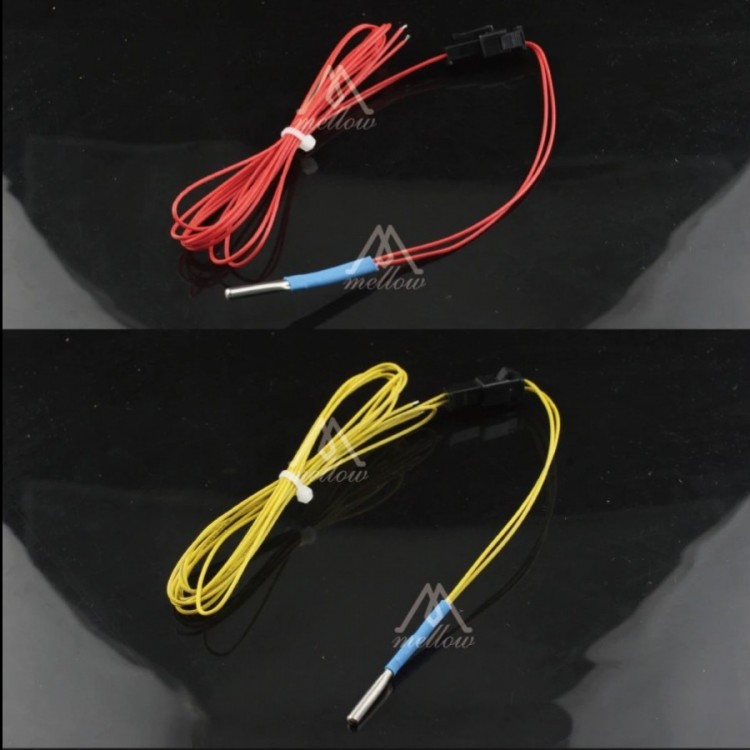

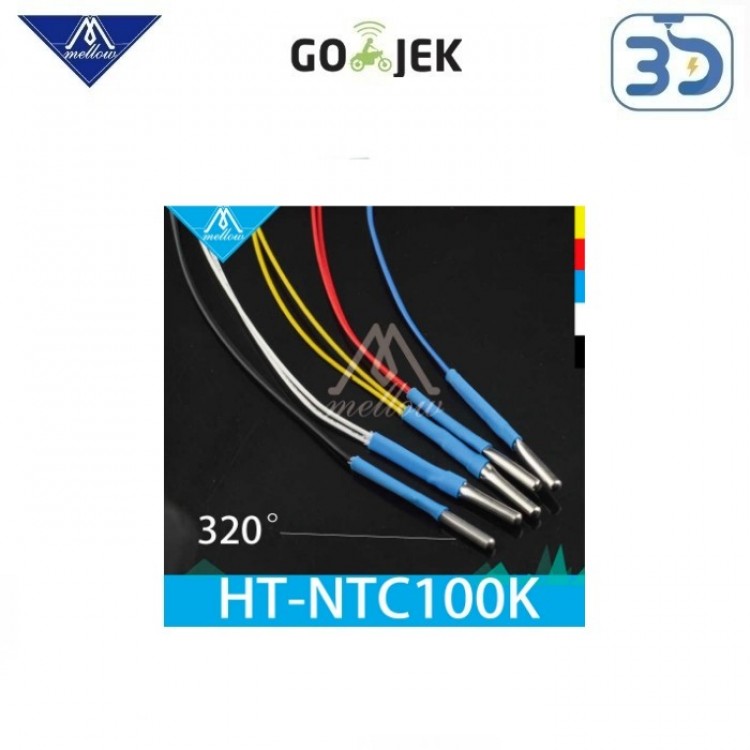

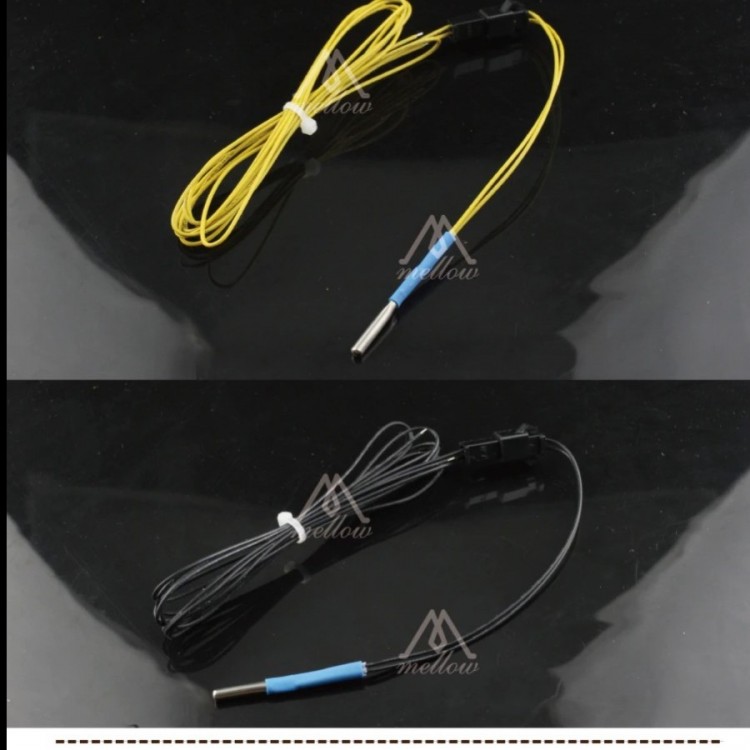

Original Mellow 1M HT-NTC100K Ohm Thermistor High Temperature NTC-3950
Panjang 1 Meter
Model: HT-NTC100K thermistor temperature sensor components,
Specifications: Negative Temperature Coefficient (NTC) Thermistor Model: B3950
Temperature measurement head size: 3 * 15mm
Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.
The improvements compared to the other temperature resistance in the market.
1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement
to resistance package temperature measurement. Temperature measurement head cylinder
diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.
2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It
helps a lot to print high-temperature filament, can replace the original K-type thermocouple
temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly
recommended.
3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel,
with the internal temperature package to ensure the maximum service life with precision
temperature measurement.
